QD 5-50/10t Slow Overhead Crane with Hook

QD 5-50/10t Slow Overhead Crane with Hook
Availability:
Quantity:
  • Overhead Crane

  • Henan KuangShan

QD 5-50/10t  Slow Overhead Crane with Hook

Henan Mine QD 5-50/10t  Slow Overhead Crane with hook is a commonly used lifting machine, which is mainly composed of a box bridge, a lifting trolley, a cart operating mechanism and an electrical control system. The retrieval device is a hook.

Tracks are laid on the main girder for the lifting trolley to move laterally along the direction of the main girder. The main girder is welded with the box-shaped end girder, and the end girder is arranged with joints, bolts or pin connections for the bridge frame to be disassembled and transported.

There are three operating modes: ground handle, wireless remote control and driver's cab. There are two types of cabs, open type and closed type, with adjustable seats, the bottom plate is covered with spacer pads, and the window glass is made of tempered glass.

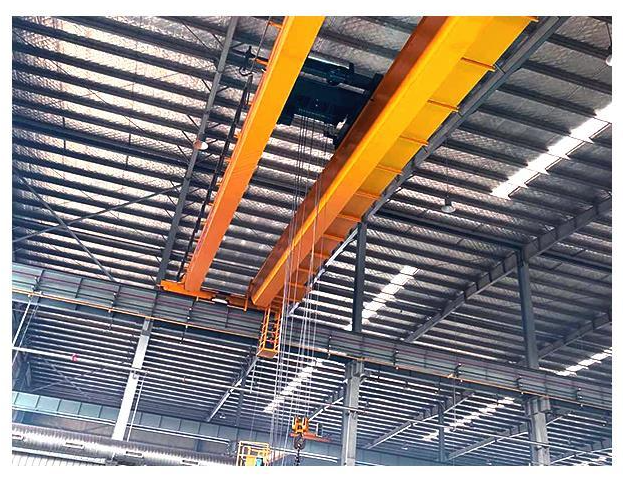

henan mine overhead crane with hook

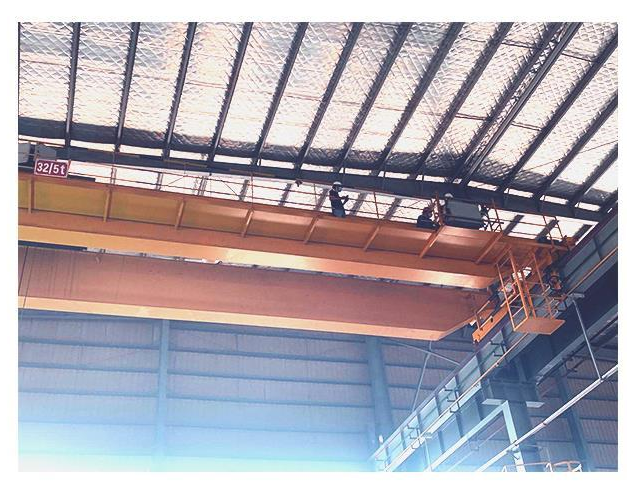

henan mine overhead crane with hook

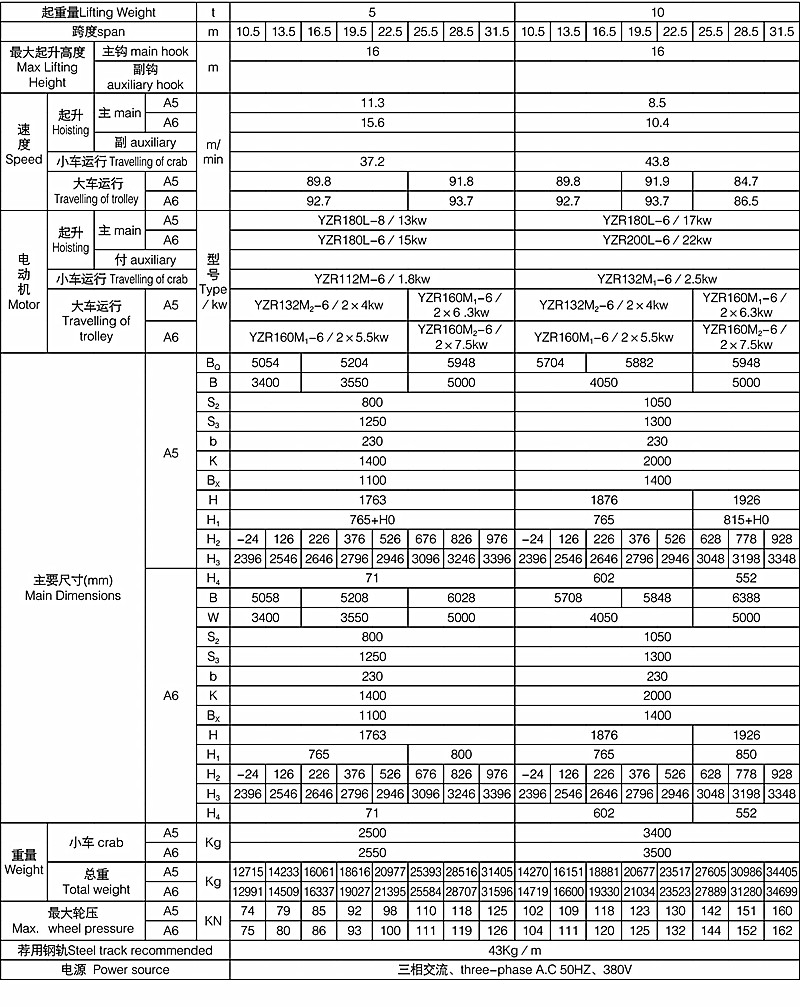

henan mine QD specification
