Magnet crane with rotating trolley is a special product equipped with electromagnetic chuck that used to lift iron or steel blocks, cylinders and so on. It consists of bridge, crane traveling mechanism, trolley, electric equipment and electromagnetic chuck. Both traveling mechanism and trolley motors are special motors for canes, large starting torque and loading capacity. Magnetic retentive is 10 minutes after power shut. The shape of electromagnet can be designed according to adsorptive goods

magnetic crane, magnet lift crane, magnet crane, double girder magnet crane, crane with magnet

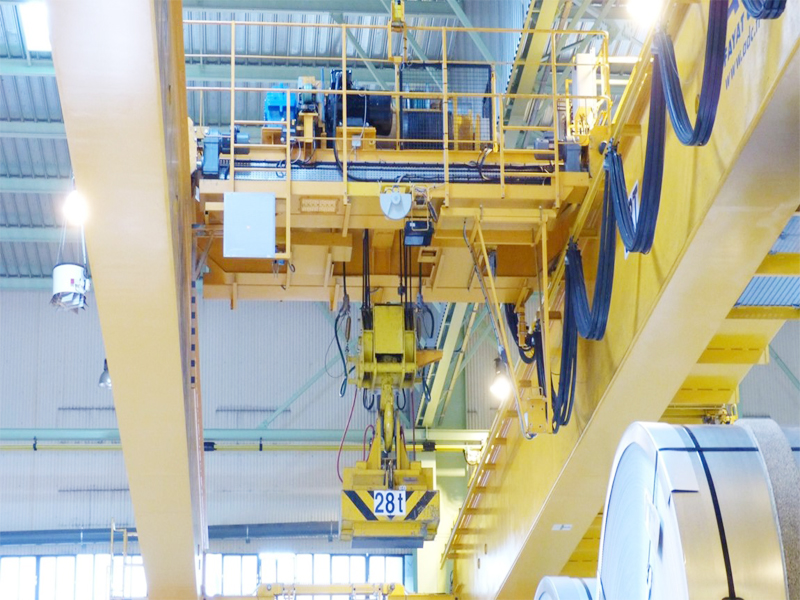

74e8241b-5fb3-49ce-9d96-c465787611b8

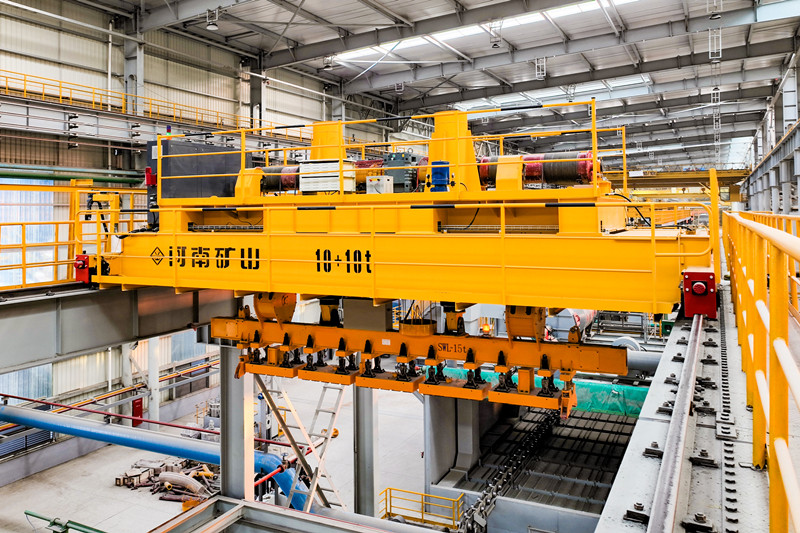

Recently, based on the innovative advantages of intelligent manufacturing, Henan Mine has independently developed and designed a fully automatic electromagnetic hanging beam crane, which has technical advantages such as high automation, strong safety and reliability, and high positioning accuracy, and has realized full automation in the true sense.

henan mine automatic electromagnetic beam crane

Lifting Capacity : from3 T to50t

Span: 4.5m to 37.5m

Lift height: 3m to 30 m

Working duty: A6(M6), A7(M7).

CE, TUV, GOST certificate, Top quality

Technical Data(carrier-beam and girder vertical or paralleled )
Capactiy(t)	Span (m)	Lifting Height (m)	Work Duty	Lifting Speed (m/min)	Crab Travelling Speed (m/min)	Trolley Travelling Speed (m/min)	Total Power (kw)	Rail
15	22.5~34.5	16	A6	13.2	36.7	101.4	63	43kg/m or QU70
15	22.5~34.5	16	A7	15.8	36.6	103.9	79.5
20	22.5~34.5	16	A6	12.6	36.2	89	71
20	22.5~34.5	15	A7	15.8	42.8	103.9	94.5
32	22.5~34.5	15	A6	12.5	37	87.3	111.3	QU70
32	22.5~34.5	16	A7	15.1	43.3	104.3	135.5	QU80
40	22.5~34.5	16	A6	11.7	37.5	87.3	128.5	QU100
40	22.5~34.5	16	A7	15.3	43.2	113.9	173	QU100

Technical Data(Rotation of the Carrier-beam)
Capactiy(t)	Span (m)	Lifting Height (m)	Work Duty	Lifting Speed (m/min)	Rotation Speed (r/min)	Crab Travelling Speed (m/min)	Trolley Travelling Speed (m/min)	Total Power (kw)	Rail
20	19.5~34.5	16	A6	13.4	1.2	37	87.3	113.5	QU80
20	19.5~34.5	16	A7	14.7	1.2	43	104.3	122.7
25	19.5~34.5	16	A6	11.8	1.2	37	87.3	114.3
25	19.5~34.5	16	A7	14.7	1.2	43	104.3	122.7
32	19.5~34.5	16	A6	10.6	1.3	38.5	103.8	148
32	19.5~34.5	16	A7	13.4	1.3	43.1	113.9	178.5
40	19.5~34.5	16	A6	10.5	1.3	37.5	103.8	170
40	19.5~34.5	16	A7	13.4		43.1	106.4	205.5	QU100

Technical Data(Rotation of the Crab)
Capactiy(t)	Span (m)	Lifting Height (m)	Work Duty	Lifting Speed (m/min)	Rotation Speed (r/min)	Crab Travelling Speed (m/min)	Trolley Travelling Speed (m/min)	Total Power (kw)	Rail
20	19.5~34.5	16	A6	13.4	1.6	37	87.3	95.3	QU80
20	19.5~34.5	16	A7	15.8	1.6	43	104.3	112.5
32	19.5~34.5	16	A6	12.8	1.64	32	90.8	134.3
32	19.5~34.5	16	A7	15	1.64	43	106.4	159.3
40	19.5~34.5	16	A6	12	1.56	33.5	90.8	149.3
40	19.5~34.5	16	A7	15	1.64	43	106.4	183.3

1. Working temperature: -25-+45 degree

2. Work moisture:<85%

3. Flammable, explosive and corrosive gas are forbidden in the work environment, there will be special used crane for these environment.

Common configuration:

1.control methods: Pendant control or remote control, Or Driver's cabin control.

2. drive units: motor+gear box+brake

3. safety device: overload limit, travel limit, over speed limted, etc.

4. Shrouded DSL system for trolley power feeding

5. Electric control box: standard is CHINT electric, Schneider-electric is for choose .
