High Quality Double Girder Overhead Crane with Grab Bucket

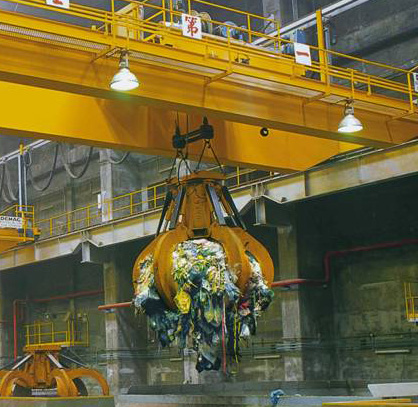

Double Girder Overhead Crane with Grab Bucket is located at the top of garbage storing pit, and is mainly used for operation of feeding, conveying, mixing, fetching and weighing of the garbage. The garbage grab crane manufactured by our company can implement lifting and conveying strictly to ensure normal work of Garbage-Cremation power Plant. This crane can be controlled by hand, semi-automatically or automatically.

Double Girder Overhead Crane with Grab Bucket is widely used in loading goods in port, factory, workshop and power plant.
Its work duty is A6.
The lifting capacity includes the weight of the grab.
The open direction of the grab is eith paralleling the girder or plumbing the girder.

Double Girder Overhead Crane with Grab Bucket

Capactiy	t	5								10
Span	m	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5
Lifting Height	m	20								18

Widely used to transport, assemble, load and unload incompact goods in mine, port, factory, workshop, warehouse, and goods yard, etc. Gran' s open direction is divided into parallel and vertical with main beam and the grab can be double or four wire rope, mechanical or electric type according to different work duty and materials.

Overload protection: If the material or electric current overstep the capacity, the crane will give a sharp warning for protection itself.

Emergency brake: If there is emergency situation, it could stop the crane to protect operator and goods.

Control method: Room control or remote control to avoid any injure to the operation staff,

Main lifting motor: With thermal protection and currency protection.

Operation model: Remote control and cabin(open and closed)

Note: The lifting capacity includes the dead weight of grab.
