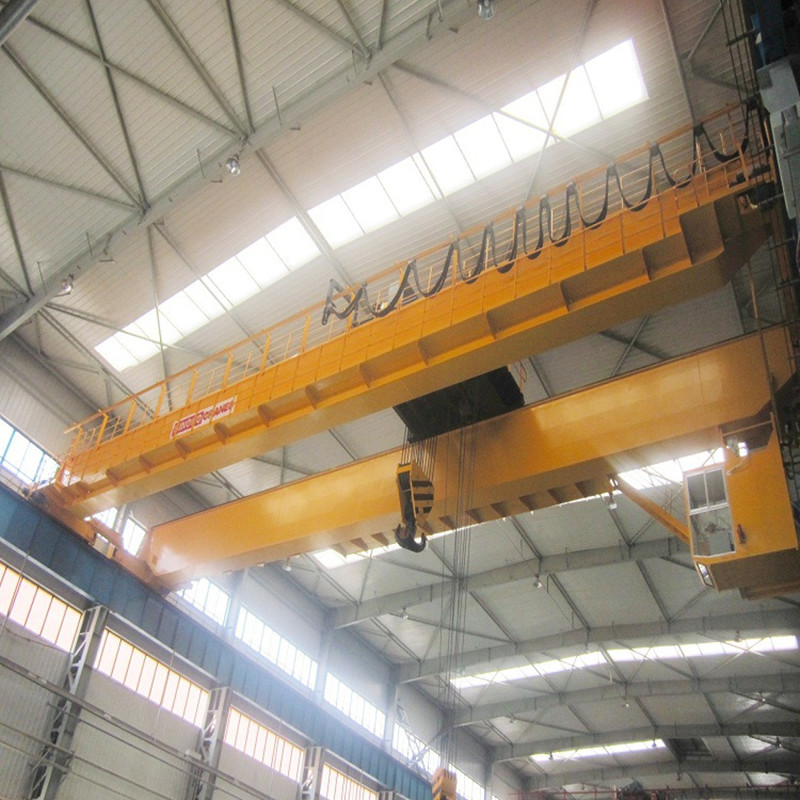

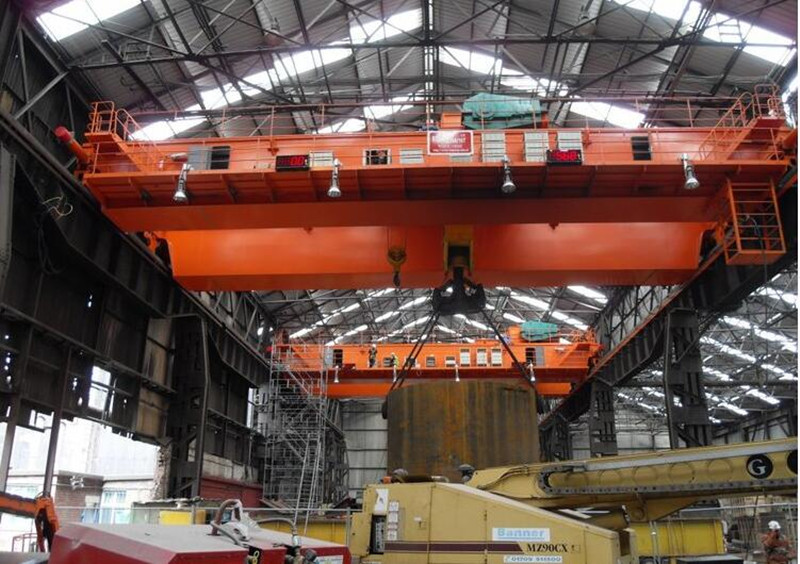

Overhead casting crane
Henan KuangShan
QDY Overhead Casting Crane with hook is mainly used for metallurgy and casting of molten metal. The working level of the whole machine is A7, and add insulation layer device at bottom of main beam. Crane assembly and test conform to document no. 375 issued by general administration of quality supervision, inspection and quarantine [2007]. Other places for lifting molten non-metallic materials and transporting hot solid metals may also be selected.
Environmental conditions:
1. The power supply of the crane is three-phase AC, rated frequency is 50HZ, and rated voltage is 380V;
2, working environment temperature is 10 ~ + 60 ℃;
3, at + 40 ℃ temperature relative humidity no more than 50%;
4. If the above requirements are exceeded, the contract terms shall be implemented according to the user's requirements.
Odering Instruction:
When odering or signing contract, The user must clearly describe the basic parameters(rated lifting weight, lifting hight, span, etc.) of the machine, so as to provide products that meet working requrements and working conditions.
QDY Overhead Casting Crane with hook is mainly used for metallurgy and casting of molten metal. The working level of the whole machine is A7, and add insulation layer device at bottom of main beam. Crane assembly and test conform to document no. 375 issued by general administration of quality supervision, inspection and quarantine [2007]. Other places for lifting molten non-metallic materials and transporting hot solid metals may also be selected.
Environmental conditions:
1. The power supply of the crane is three-phase AC, rated frequency is 50HZ, and rated voltage is 380V;
2, working environment temperature is 10 ~ + 60 ℃;
3, at + 40 ℃ temperature relative humidity no more than 50%;
4. If the above requirements are exceeded, the contract terms shall be implemented according to the user's requirements.
Odering Instruction:
When odering or signing contract, The user must clearly describe the basic parameters(rated lifting weight, lifting hight, span, etc.) of the machine, so as to provide products that meet working requrements and working conditions.
