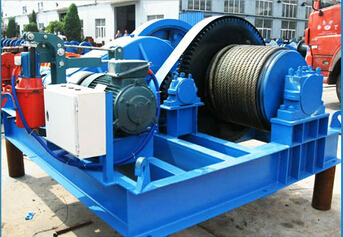

High speed electric winch , most of time, is followoperated by people on the ground, in the room,or be operate with wireless type in far way, except exclusive-use. It can also use with electric trolley and plain trolley, geared trolley. These trolleys are simple structure, light weight and easy to load and unload. They can be used not only forever, but also temporarily.
High speed electric winch can be widely used in port, workshop, warehouse, construction and manu kinds of producing-line. So it is an necessary equipment for lifting goods, raising labor efficiency and improving working conditions.
High speed electric winch has fast hoisting speed. It is used for hoisting and unloading the weight materials, such as all kinds of large and middle concrete construction of steel,installation and disassembly of mechanical equipment,it is suitable for construction and installation engineering of construction,mining area,factory and so on.
The standard capacity of electric winch is 1t-2t, 3t, 5t, 6t, 8t, 10t, 12t, 16t, 20t, 32t.....etc. The max rope length is up to 1500m.
High speed electric winch , most of time, is followoperated by people on the ground, in the room,or be operate with wireless type in far way, except exclusive-use. It can also use with electric trolley and plain trolley, geared trolley. These trolleys are simple structure, light weight and easy to load and unload. They can be used not only forever, but also temporarily.
High speed electric winch can be widely used in port, workshop, warehouse, construction and manu kinds of producing-line. So it is an necessary equipment for lifting goods, raising labor efficiency and improving working conditions.
High speed electric winch has fast hoisting speed. It is used for hoisting and unloading the weight materials, such as all kinds of large and middle concrete construction of steel,installation and disassembly of mechanical equipment,it is suitable for construction and installation engineering of construction,mining area,factory and so on.
The standard capacity of electric winch is 1t-2t, 3t, 5t, 6t, 8t, 10t, 12t, 16t, 20t, 32t.....etc. The max rope length is up to 1500m.
model | JM-2T | JM-3T | JM-5T | JM-8T | JM-10T | |
Line pullcapacity(KN) | 20 | 30 | 50 | 80 | 100 | |
Rope speed(m/min) | 12 | 10 | 10 | 10 | 9 | |
Wire rope dia.(mm) | 12.5 | 15.5 | 21.5 | 26 | 30 | |
Gear box | model | JZQ350 | JZQ350 | JZQ400 | JZQ500 | JZQ650 |
Transmission ratio | 23.34 | 31.5 | 23.34 | 31.5 | 40.17 | |
drum | Diameter(mm) | 273 | 325 | 406 | 500 | 530 |
Length(mm) | 480 | 520 | 700 | 900 | 1000 | |
Rope capacity(m) | 150 | 180 | 250 | 300 | 350 | |
motor | model | YZ160M2-6 | YZ160M2-6 | YZ160L-6 | TZR225M-8 | YZR250M1-8 |
Power(kw) | 7.5 | 7.5 | 11 | 22 | 30 | |
Rotate speed(r/min) | 948 | 948 | 953 | 720 | 720 | |
Hydraulic fail safe brake | YZW-200/25 | YZW-200/25 | YZW-300/45 | YZW-300/45 | YZW-300 | |
Equipment dimension(mm) | 1060X1500X750 | 1600X1100X820 | 1400X1910X950 | 2050X1640X1000 | 2470X2280X1180 | |
Weight(kg) | 630 | 680 | 1400 | 3000 | 4000 |
model | JM-2T | JM-3T | JM-5T | JM-8T | JM-10T | |
Line pullcapacity(KN) | 20 | 30 | 50 | 80 | 100 | |
Rope speed(m/min) | 12 | 10 | 10 | 10 | 9 | |
Wire rope dia.(mm) | 12.5 | 15.5 | 21.5 | 26 | 30 | |
Gear box | model | JZQ350 | JZQ350 | JZQ400 | JZQ500 | JZQ650 |
Transmission ratio | 23.34 | 31.5 | 23.34 | 31.5 | 40.17 | |
drum | Diameter(mm) | 273 | 325 | 406 | 500 | 530 |
Length(mm) | 480 | 520 | 700 | 900 | 1000 | |
Rope capacity(m) | 150 | 180 | 250 | 300 | 350 | |
motor | model | YZ160M2-6 | YZ160M2-6 | YZ160L-6 | TZR225M-8 | YZR250M1-8 |
Power(kw) | 7.5 | 7.5 | 11 | 22 | 30 | |
Rotate speed(r/min) | 948 | 948 | 953 | 720 | 720 | |
Hydraulic fail safe brake | YZW-200/25 | YZW-200/25 | YZW-300/45 | YZW-300/45 | YZW-300 | |
Equipment dimension(mm) | 1060X1500X750 | 1600X1100X820 | 1400X1910X950 | 2050X1640X1000 | 2470X2280X1180 | |
Weight(kg) | 630 | 680 | 1400 | 3000 | 4000 |
1.Top quality with competitive price.
2.Widely used in factory, mining or double beam cranes.
3.Easy to install
4.Compact structure and reasonable design.
1.Top quality with competitive price.
2.Widely used in factory, mining or double beam cranes.
3.Easy to install
4.Compact structure and reasonable design.
1.Rated load:5KN-100KN
2.Rope diameter:160mm-300mm
3.Supply various windlass
4.ISO certificated, top quality
1.Rated load:5KN-100KN
2.Rope diameter:160mm-300mm
3.Supply various windlass
4.ISO certificated, top quality
