High Quality Electric Wire Rope Hoist



Model CD1,MD1 Wire Rope Electric Hoist is a small-sized lifting equipment,which can be mounted on singlebeam,bridge,gantry and arm cranes.With slight modification,it can also be used as a winch.It is widely used in factories,mines,harbours,warehouses,cargo storage areas and shops,es sential in raising working efficiency and improving working conditions.

Model CD1 Electric Hoist has only one normal speed,which can satisfy normal application.Model MD1 Electric Hoist provides two speeds:normal speed and low speed.At a low speed,it can do precise loading and unloading,mounding of sand box,maintenance of machine tools,etc.Thus,model MDI Electric Hoist is more widely than Model CD1.

High quality electric wire rope hoist :CD1 Electric Hoist has only normal speed, which can satisfy the general working requirement.MD1 Electric Hoist has one more hoisting motor and one slow speed actuating device,which make the model have two speeds. When it works slowly, it can satisfy the precise task such as precise working of loading or unloading, stand to break-in.Other types electric hoists are similar to CD/MD Electric Hoist in a certain degree. The standard capacity of this type electric hoist: 0.5T, 1T, 2T, 3T, 5T, 10T, 16T, 20T,

Lifting height: 6m, 9m, 12m, 18m, 24m, 30m, and Max.100m.

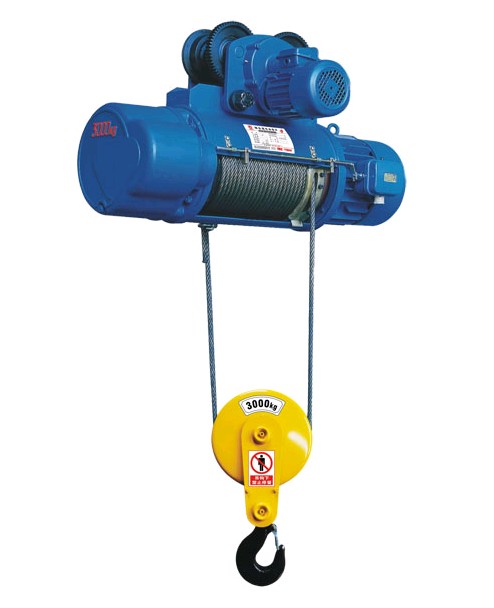

CD1,MD1 Wirerope Electric Hoist

High quality wire rope electric hoist can travel rotation through the trolley hanging on the I-steel,and install on the single beam crane,gantry crane,jib crane and overhang crane to rise and fall the cargos. So it can be used in factories,mines,wharf,warehouse,freight yards,and shops and so on which need lifting equipment for lifting heavy objects. Such as mining companies and railways,docks,warehouse, It is prohibited to manned.

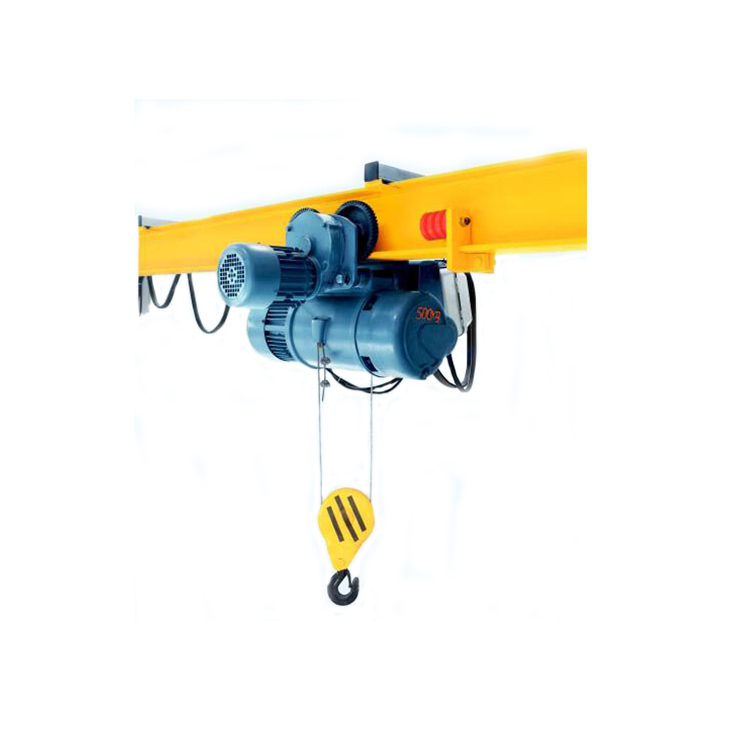

CD1,MD1 Electric Hoist

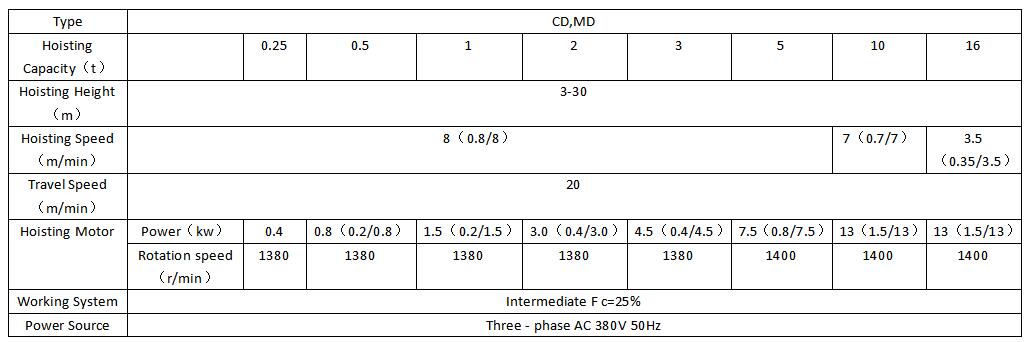

henan mine CD1 specification

1)Crane travelling limit switch,

2)Weight overload protection device,

3)Voltage lower protection function,

4)Phase sequence protection function,

5)Emergency stop function,

6)Rain cover for outside hoist,driving units,electrical cubicle,

7)Warning indicator:flashing lights and warning sound.

8)Wireless infra-detector for anti-collusion.

It is a kind of special lifting equipment used in small and medium-sized metallurgical workplace.

The electric hoist job level up to M6.

Lifting mechanism configuration has a support brake and safety brakes, when tapered motor brake failure or intermediate transmission links fails, installed in high- speed reducer shaft of the dc electromagnetic brake or installed in the drum brake began to act, ratchet wheel brake, avoid heavy- weight to stall dangerous.

With a double limit on the limit function.

Weight limit protection.

High temperature heat insulation protection function.

Lifting motor and running the insulation of the motor by H class and grade in lifting motor overheating protection device placed in the windings.

The special occasion of wire rope configuration metallurgy high strength and high temperature wire rope.

Control way give priority to the remote control.
