single beam crane
Henan KuangShan

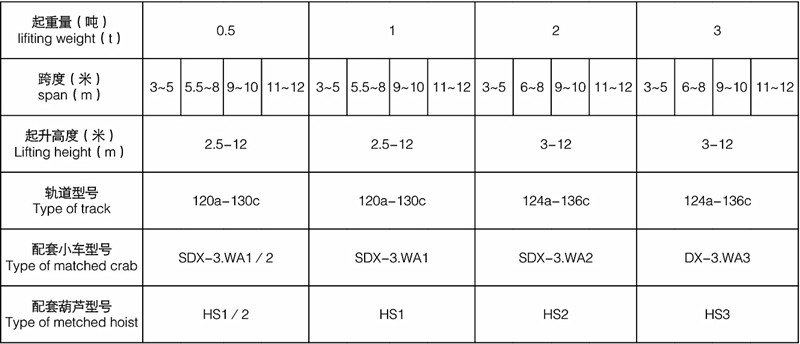

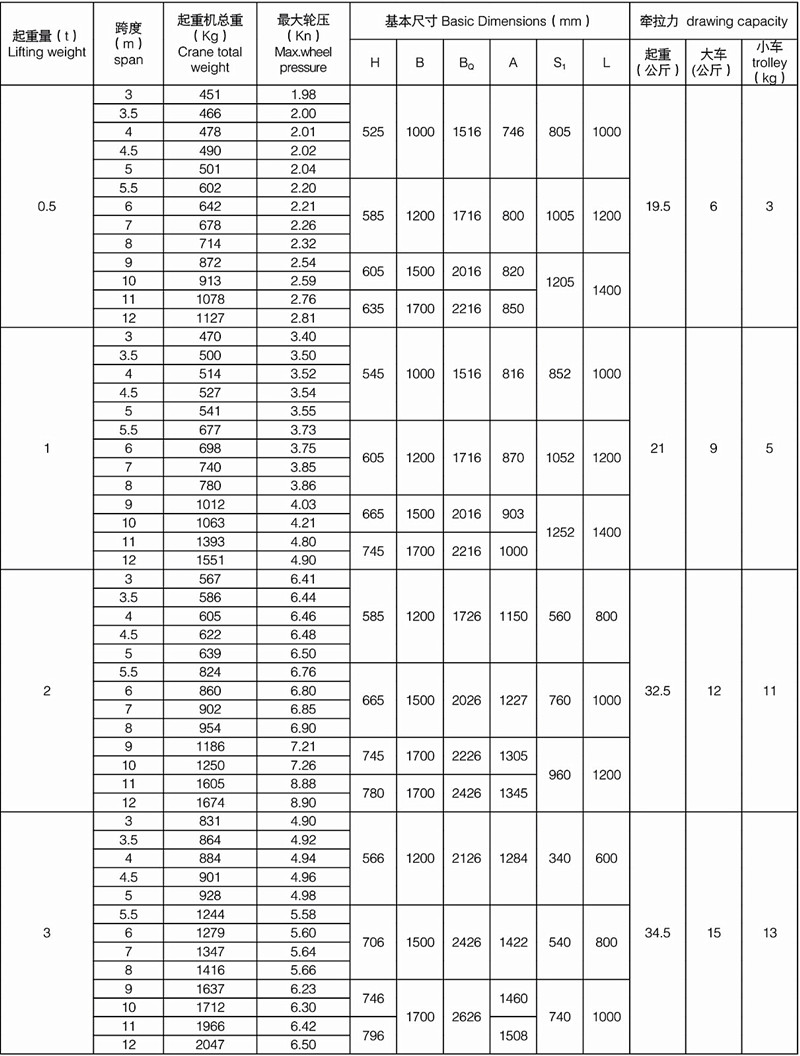

SDXQ-3 manual single beam Suspending Crane
SDXQ-3 manual single-girder suspension bridge crane is used in conjunction with CD1 and MD1 electric hoists. It is a light and small crane running on rails.
Used in machinery workshops, assembly and warehouses and other places. This product is ground operated.
The working environment temperature is -25---+40°C, and it is forbidden to work in the environment of flammable, explosive and corrosive media.
The suspension crane can be directly installed on the roof structure of the existing factory building, so there is no need to install the crane rail bracket, so that the entire factory area can be used for production. In addition, it can also be used for only part of the factory building according to needs, by using outriggers. The cantilever can make the traveling range of the trolley exceed the span of the crane. If the interlocking device is added, the trolley can go back and forth between the main beam of the crane and the monorail without unloading.
Features and Benefits:
SDXQ-3 manual single-girder suspension bridge crane has many advantages and can ensure long-lasting high quality
The crane end beam adopts torsion box structure
Rigid I-beam or welded box girders as main beams
Due to the unique design of the end beam, the limit size of the hook is small, and the working coverage is large.
SDXQ-3 manual single beam Suspending Crane
SDXQ-3 manual single-girder suspension bridge crane is used in conjunction with CD1 and MD1 electric hoists. It is a light and small crane running on rails.
Used in machinery workshops, assembly and warehouses and other places. This product is ground operated.
The working environment temperature is -25---+40°C, and it is forbidden to work in the environment of flammable, explosive and corrosive media.
The suspension crane can be directly installed on the roof structure of the existing factory building, so there is no need to install the crane rail bracket, so that the entire factory area can be used for production. In addition, it can also be used for only part of the factory building according to needs, by using outriggers. The cantilever can make the traveling range of the trolley exceed the span of the crane. If the interlocking device is added, the trolley can go back and forth between the main beam of the crane and the monorail without unloading.
Features and Benefits:
SDXQ-3 manual single-girder suspension bridge crane has many advantages and can ensure long-lasting high quality
The crane end beam adopts torsion box structure
Rigid I-beam or welded box girders as main beams
Due to the unique design of the end beam, the limit size of the hook is small, and the working coverage is large.
