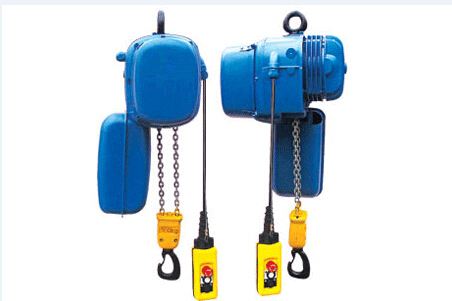

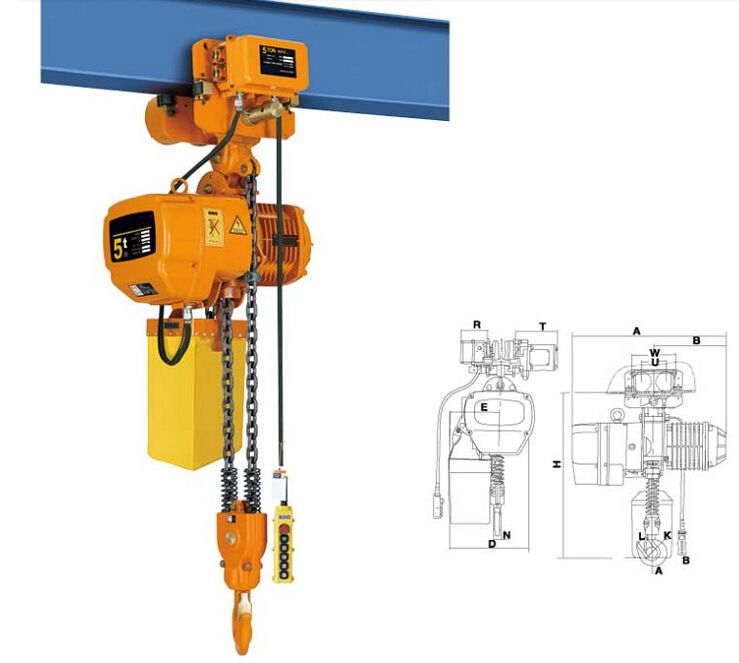

High Quality 1ton Electric Chain Hoist

1 The hoist with double-lifting speed in cast aluminium,sliver gray,

2 Detachable handle,

3 Lifting electric control system with 380V/48V/50HZ,

4 Electric control door control with quick coupling,

5 Limit switch for up and down,

6 Black plastic chain bag,

7 Hook and chain(lifting height is 3-6meters).

1. Compact and high efficient motor, low power consumption

2.Limit switch devices fitted at both top & bottom ends, switch off power automatically to prevent load chain from running out.

3. Most tensile safety hooks: Both the top and bottom hooks are made of high tensile alloy steel with special treatment; It guarantees the hook will not break and deform gradually under a sudden extra-load

4. Compact and beauty chain container: High strength plastic container has outstanding durability

5. Limit switch devices fitted at both top and bottom ends: Switch off power automatically to prevent load chain from running out

6. Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.

1 The 220V direct control or other national standard voltage,

2 The single speed of double speed lifting motor,

3 Manual or electric trolley, with I-beam, H-beam, or KBK-lightweight flexible modular crane,

4 The radio telecontrol,

5 Large chain bag(for high lifting height).

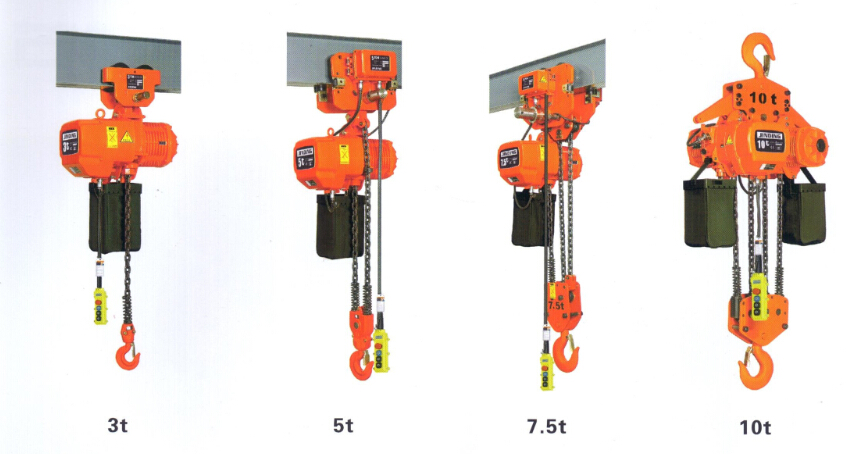

Capacity:  0. 3T-35T; customized accepted;

Span: ≥3M basic, customized accepted;

Lift height: ≥3M basic, customized accepted;

Motor: Dedong brand;

Lift speed & cross speed: by frequency converter;

Electric control panel: Schneider brand;

Work duty: A3-A5

Fully customized solutionsare available ahead standard configurations.
