High Quality Double Girder Overhead Crane - Buy High Quality Double Girder Overhead Crane Product on Henan KuangShan Crane Co., LTD

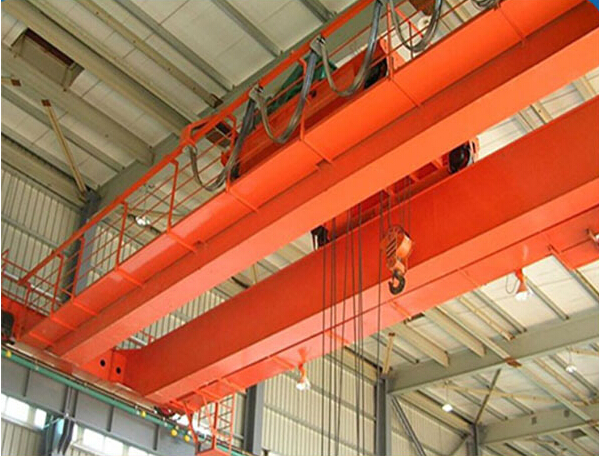

Double beam overhead crane is characterized by more reasonable structure and higher strength steel as a whole,used together with CD1 model,MD1 model electric hoist as a complete set,it is a light duty crane with a capacity of 1ton to 20tons. The span length is 7.5m-28.5m. This product is widely used in plants,warehouse,material stocks to lift goods. It is prohibited to use the equipment in the combustible,explosive or corrosice environment.

henan mine double beam crane

Capacity (t)	Span (m)	Lifting Height (m)	Work Duty	Main Hoist Speed (m/min)	Aux.Hoist Speed (m/min)	Cross Travel Speed (m/min)	Long Travel Speed (m/min)	Rail	Total Power (Kw)
5	13.5～19.5	18	A5	0.84-8.4		3.4-34	5.1-51	38kg/m	10.44
	22.5～31.5						5-50		11.24
10	13.5～19.5	18	A5	0.78-7.8		3-30	5-50	38kg/m	18.74
	22.5～31.5						5.2-52		20.14
16/5	13.5～19.5	18/18	A5	0.76-7.6	0.84-8.4	3.5-35	5.1-51	43kg/m	37.7
	22.5～31.5						5.2-52		39.7
20/5	13.5～19.5	18/18	A5	0.6-6	0.84-8.4	3.5-35	5.1-51	43kg/m	37.7
	22.5～31.5						5.2-52		39.7
32/5	13.5～19.5	18/18	A5	0.5-5.2	0.84-8.4	3.1-31	5.1-51	43kg/m	56
	22.5～31.5						5.2-52		59
50/10	13.5～19.5	18/18	A5	0.4-3.9	0.78-7.8	3.6-36	4.8-48	43kg/m	67.4
	22.5～31.5						5.4-54		71.4

1) Weight overload protective device.

2) Top quality polyurethane buffer.

3) Crane traveling limit switch and lifting limit switch.

4) Low voltage protection function.

5) Emergency stop system.

6) Current overload protection function.

Electric parts:To keep the crane power-good,brand of electric parts such as:Chint,Siemens,

Motors:China top brand,is strictly chosen according to the application and working environment,

Brakes:Failsafe magnetic or hydraulic brakes of 150% torque or more are fitted on shaft extensions. For heavy duty cranes a second brake can be mounted to ensure failsafe operation.

Wheels:Produces in our special vacuum casting workshop(No sand inclusion technic)Which make our wheels more elastic and outer surface hard-wearing and durable.

Hook:Normal hook and swing hook for your various application.

Electric hoist:CD or MD model electric hoist to satisfy your different speed requirement. Durable rope guide and limit switch help your lift in good order.

Painting:The color as your required,two coats of primer before assembly&two coats of synthetic enamel after testing.
